Home > Product > LED High Bay light > Round UFO LED High Bay Light/LED Warehouse Lamp/100W 150W 200W 240W

Round UFO LED High Bay Light/LED Warehouse Lamp/100W 150W 200W 240W

*New design, with lighter weight, better heat dissipation, more stable quality, easy to install

*The main accsseries are imported materials, anti-high temperature and anti-corrosion

*The led chips are the imported high brightness chips, with higher lumen output, high thermal conductivity, low luminous decay, pure light color, no ghosting etc

*The lamps are with the angle locking device, to ensure the angle won't be changed for the long-term working in the vibration environment

*Using the latest technology of heat radiation structure, can ensure lamp life

*With pedestal, pendant, pole, Chain, Bracket etc installation methods.

Download Collection Catalogue Inquire

Specification
Application
Packing details
Inquire

Specification for UFO round new design led high bay light:

Greenough Round UFO high quality LED high bay, new design for industrial led lighting. Adopting the Nichia3030 led chip, it is well known Cree, Nichia & Philips are top quality brands in industrial LED market.

With longer lifespan, lower maintenance cost, higher efficiency. LED chip could last up to 50000 hours if the heat dissipation is good enough and driving current is correct.

This Industrail UFO led high bay light is available in round and square version for Warehouse and Airport ect led lamp. Available in 100W 150W 200W 240W, the round one is much popular than square one.

They are with IP 65 protection level with Meanwell Driver. With high lighting effect: 100-130LM/W. With better heat dissipation, more stable quality.

The input voltage is 90-305VAC, PF is more than 0.95, and they also could be dimming in 0-10V or Dali Dimming.

Our UFO led high bay light could be for industrial use with 5 years warranty.

It is with special design heat sink and the top lens for dazzle, the lens is different with others. Also it is with less transportaion cost compare with other styles. As the design of this item UFO LED high bay light are more fashion and lightness but to maintain unified and perfection of buildings when to be installed, without destroying the luminaire and lights embedded without glare to achieve effect of soft and uniform light.

They will be in pedestal, pendant, pole, Chain, Bracket etc installation methods.

Part Number		GNH-R-HBL-100W	GNH-R-HBL-150W	GNH-R-HBL-200W
Power (W)		100W	150W	200W
Input voltage(V)		90-305VAC
Input Current		0.46A@220VAC	0.62A@220VAC	0.91A@220VAC
PF		>0.95@220VAC
DC V out		50-60VDC
DC V out		1.6A	2.45A	3.3A
CCT		Warm（4000K/Ra80）,White（5700K/Ra70 and Ra80）
Ra >80	Typical Flux	10000 Lm±10%	18750 Lm±10%	22000 Lm±10%
Ra >70	Typical Flux	11000 Lm±10%	20250 Lm±10%	24000 Lm±10%
LED Qty (pcs)		117	234	234
LEDBrand		Nichia3030
Beam Angle		PC lens with 60°and 90°
IP Grade		IP65	IP65	IP65
Operation Temp		-40℃ ~ +65℃
Body Color		Black (MOQ is required for other color demand.)
Life Span		50000 Hours	50000 Hours	50000 Hours
Product Size(mm)	CE Driver	300300156	360360172	360360172
	Meanwell Driver	300300182	360360198	360360207
Packing Size(mm)	CE Driver	368368216	424424270	424424270
	Meanwell Driver	368368216	424424270	424424270
Mounting Type		Pole (default), Chain (optional), Bracket (optional)

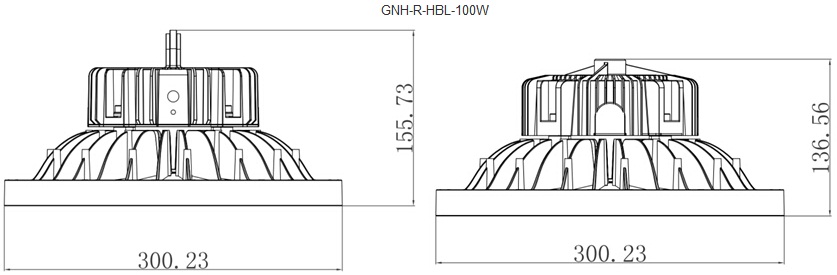

Size for round new design led high bay light:

Distribution Diagram(100W in 60°and 200 in 90°for reference)

Structure for round new design led high bay light:

Aging Test for Greenough LED High Bay Light:

Key words: UFO/Round/Square LED High Bay Light

Greenough Enterprise Co., Ltd produce (AC Driverless dimmable) led T8, T5 tube light, Pink led tube light, led panel light, (AC Driverless dimmable) led spot light, (AC Driverless dimmable) led down light, (AC Driverless dimmable) led flood light, (AC Driverless dimmable) led high bay light, led canopy light, led PAR light.

Application for Greenough UFO led high bay light:

LED High Bay Light adopts High quality LED chips source with longer lifespan and low lighting decay LED High Bay Light Application:

Suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...

and some other places where need industrial lighting.

Packing for round new design led high bay light:

Part No.	Driver	Packing Box	Gross Weight	Net weight
GNH-R-HBL-100W	CE Driver	368368216	4.80Kg	3.90Kg
GNH-R-HBL-100W	Meanwell	368368216	4.40Kg	3.50Kg
GNH-R-HBL-150W	CE Driver	424424270	6.80Kg	5.40Kg
GNH-R-HBL-150W	Meanwell	424424270	7.10Kg	5.70Kg
GNH-R-HBL-200W	CE Driver	424424270	6.80Kg	5.40Kg
GNH-R-HBL-200W	Meanwell	424424270	7.70Kg	6.30Kg
