● Replacement for 40W traditional incandescent bulb |
● Dimmability optional |
● Indoor lighting for residential use |
● Lifetime: >25,000 hrs; lasting 25 times longer than incandescent bulb |
● Health protection: no UV/IR; more comfortable for vision |
● Environmental protection: zero Mercury; lower CO2 emission |
● Energy saving: electricity saving rate more than 80%; lower burden on air-conditioner |
● Lighting convenience: instant lighting-on with no flickering |
● Easy to use: compatible with general lamp-socket |

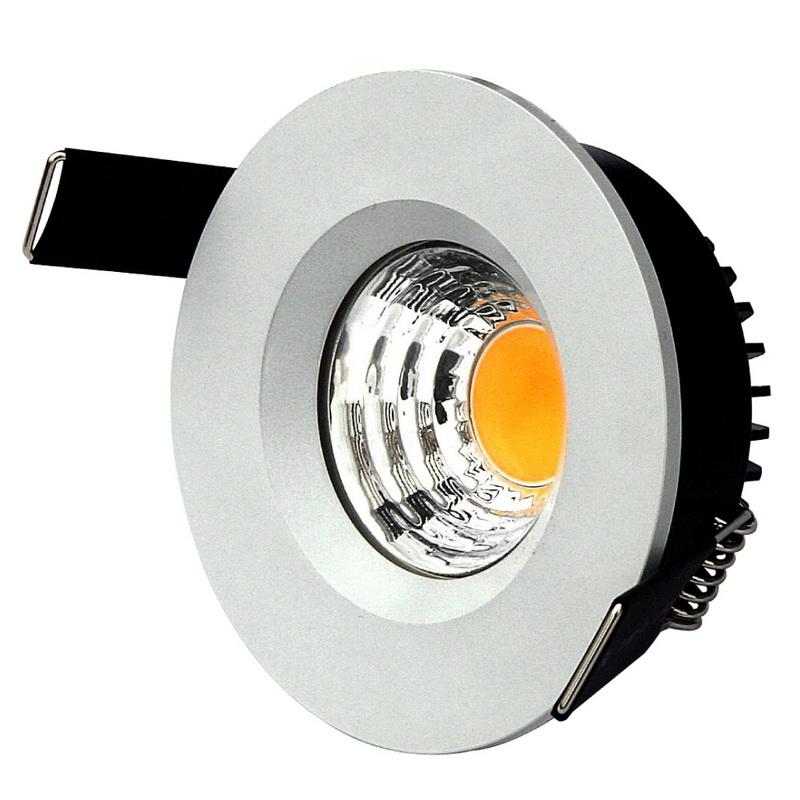

Item Number | 8W LED COB Down Light GE-00140-8W |
Lumen Output | 480 lm ~ 540 lm | |
Power Consumption | 8W | |
Luminous Efficiency |
60 ~ 70 lm/W |
|
CRI |
>Ra80 ~ 85 |
|
CCT |
2700K ~ 6000K |
|
Working Voltage |
AC100-240V ~,02 50/60Hz |
|
Powerfactor |
?????????????>0.9 |
|
Light Source |
COB chip |
|
LED Quantity |
1 pc |
|
Base |
--- |
|
Dimmability | Optional |
Beam Angle |
45° |
|
Suface Processing |
Electro white, wiredraw, sand blasting |
|
Glass Cover Option |
Transparent, Frosted Glass |
|
Lifetime |
??25,000 hours, 8 hours a day, life experancy of 8 years |
|
Warranty |
3 years,promise brightness decrease is less than 25% in 3 years. |
|
Certificate |
CE, RoHS |

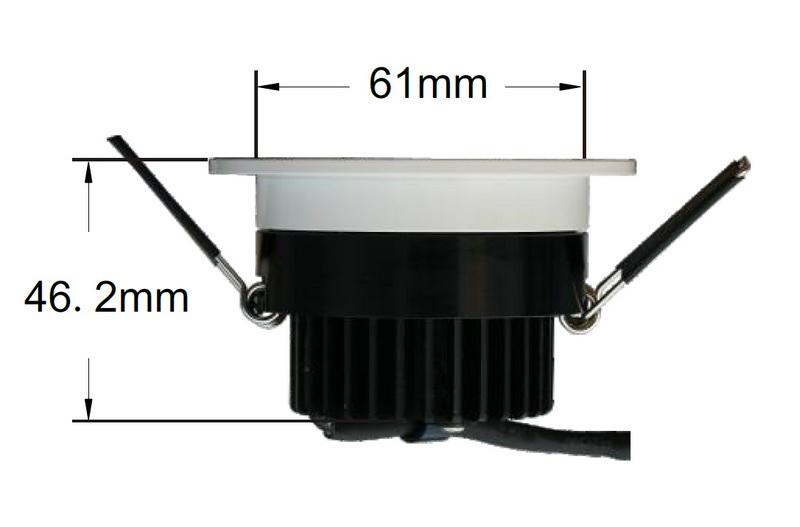

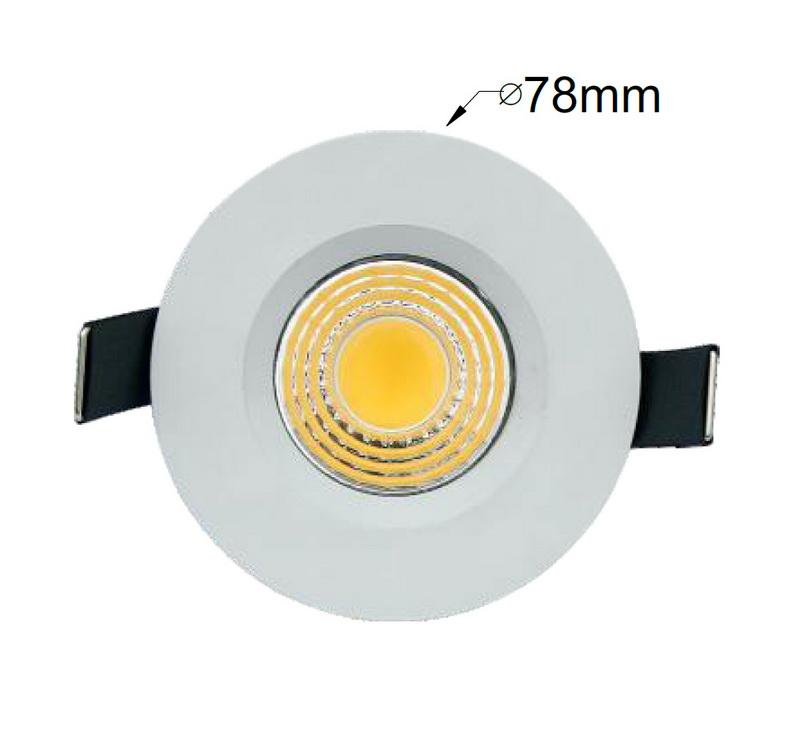

Measurement |
46.2mm x 78mm diam. |
|
Hole Diamter |
70mm diam. |
|
Packing Box |
(L)110*(W)*110*(H)110mm. 0.26kg/box, 50pcs/Carton |
|
Outer Carton |
(L)610*(W)*610*(H)185mm 14kg/carton |
LED retrofit candlelight is suitable for all sorts of applications such as in hospitals, museums, universities, bars & restaurants, hotel corridors, etc.
Product | Power (watts, W) | Luminous Flux (lm,lm) | Replacement the incandescent power (watts,W) |
LED Bulb |
2 | 150 ~ 180 | 25 |
2.5 | 200 ~ 230 | 40 | |
3 | 250 ~ 310 | 40 | |
4 | 250 ~ 310 | 40 | |
5 | 350 ~ 380 | 60 | |
6 | 450 ~ 480 | 100 |

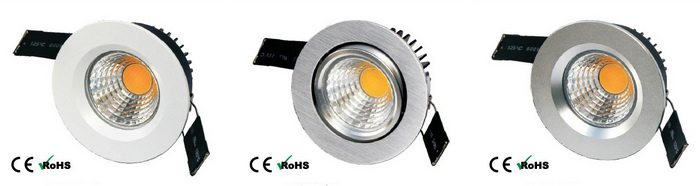

Surface Processing Option
Electro White | Wiredraw | Sand Blasting |

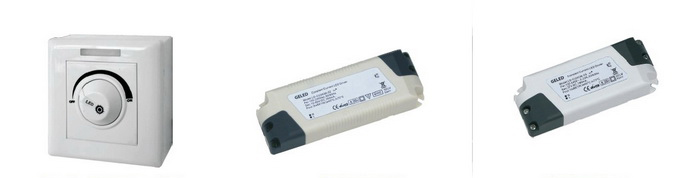

Driving power supply
Dimmer( types: 0- 1 0V; silicon controlled) | Dimmable power supply | External Driver dimension |

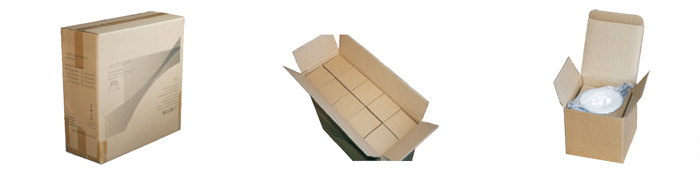

Packing
Carton size: (L)610*(W)*610*(H)185mm | Package: 50PCS/Carton | Inner box size: (L)110*(W)*110*(H)110mm |

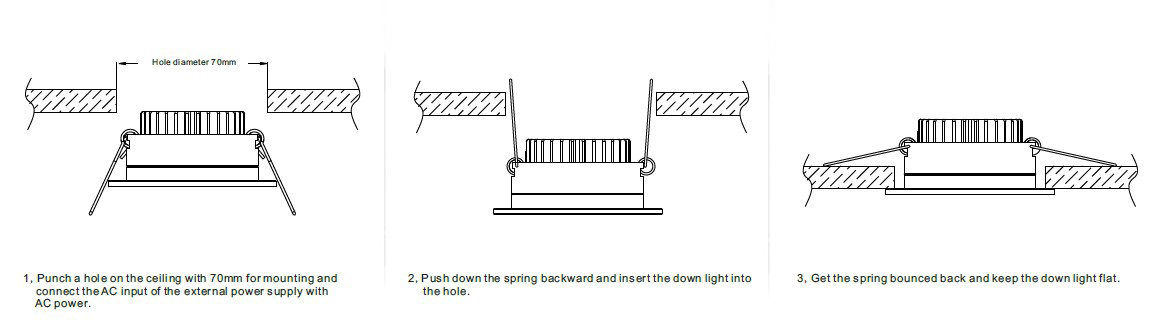

Mountinginstruction
