GNH01-DL-8W-01 10W LED COB DOWN LIGHTING

● Replacement for 40W traditional incandescent bulb

● Dimmability optional

● Indoor lighting for residential use

● Lifetime: >25,000 hrs; lasting 25 times longer than

incandescent bulb

● Health protection: no UV/IR; more comfortable for vision

● Environmental protection: zero Mercury; lower CO2

emission

● Energy saving: electricity saving rate more than 80%; lower

burden on air-conditioner

● Lighting convenience: instant lighting-on with no flickering

● Easy to use: compatible with general lamp-socket

Download Collection Catalogue Inquire

Specification
Application
Note
Inquire

Item Number

8W LED COB Down Light GE-00140-8W

Lumen Output	480 lm ~ 540 lm
Power Consumption	8W
Luminous Efficiency	60 ~ 70 lm/W
CRI	>Ra80 ~ 85
CCT	2700K ~ 6000K
Working Voltage	AC100-240V ~,02 50/60Hz
Powerfactor	?????????????>0.9
Light Source	COB chip
LED Quantity	1 pc
Base	---

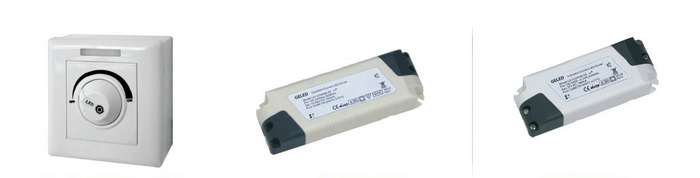

Dimmability	Optional

Beam Angle	45°
Suface Processing	Electro white, wiredraw, sand blasting
Glass Cover Option	Transparent, Frosted Glass
Lifetime	??25,000 hours, 8 hours a day, life experancy of 8 years
Warranty	3 years,promise brightness decrease is less than 25% in 3 years.
Certificate	CE, RoHS

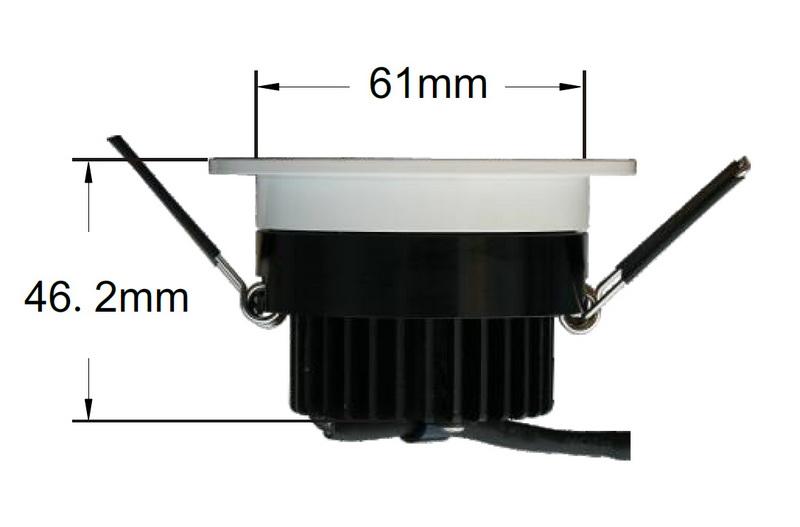

Measurement	46.2mm x 78mm diam.
Hole Diamter	70mm diam.
Packing Box	(L)110(W)110*(H)110mm. 0.26kg/box, 50pcs/Carton
Outer Carton	(L)610(W)610*(H)185mm 14kg/carton

LED retrofit candlelight is suitable for all sorts of applications such as in hospitals, museums, universities, bars & restaurants, hotel corridors, etc.

Product	Power (watts, W)	Luminous Flux (lm,lm)	Replacement the incandescent power (watts,W)
LED Candle Light LED Bulb	2	150 ~ 180	25
	2.5	200 ~ 230	40
	3	250 ~ 310	40
	4	250 ~ 310	40
	5	350 ~ 380	60
	6	450 ~ 480	100
