*Available in 200W 300W 400W 500W 600W 700W 900W 1000W 1200W
* Use high quality LED driver- MEANWELL brand.
* Use high luminous efficacy LED chips - Lumileds 5050.
* Die-cast aluminum lamp housing, excellent structure for heat dissipation.
*The surface of the lamp is anti-corrosion treated and powder coating, can be used at seaside.
*Dust-proof, moisture proof and waterproof, IP66 rated.
*Excellent optics design, higher luminous efficiency.
*Compare to traditional lamps can save energy 60%-70%.
*5 years warranty

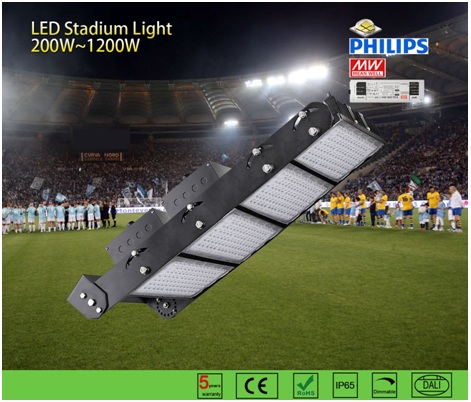

Product Description of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:
LED Sports stadium light are designed to repalce 400W to 2000W Metal Halide and HPS stadium lights.
LED Stadium lights have so many applications over and above lighting up outdoor sports areas.
The area flood light can Light up courts and stadiums. These lights are durable and protect against tough weather conditions.
Also they can be used for security lighting, flood lighting and on top of large poles.
We can support high voltage applications up to 480V.
Specification of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:
Input voltage: |
AC85~305V 50/60Hz |
LED Driver: |
MEANWELL |
||
Lamp Material: |
Die-cast Aluminum+PC lens |
Luminous flux: |
≥140lm/W |
||
CCT: |
2700K~6500K |
Power Factor: |
>0.95 |
||
Lifespan: |
>50000hours |
IP Grade: |
IP66 |
||
LED chip: |
Lumileds 5050 |
Working Environment: |
-40°C ~ 60°C |
||
CRI: |
>70 |
Beam Angle: |
10°,25°,60° |
||
Item no.: |
GNH-SL-1-200W |
Wattage: |
200W |
Size: |
315×420×155 (mm) |
GNH-SL-1-240W |
Wattage: |
240W |
Size: |
||
GNH-SL-1-300W |
Wattage: |
300W |
Size: |
||
GNH-SL-1-400W |
Wattage: |
400W |
Size: |
495×420×155 (mm) |
|
GNH-SL-1-500W |
Wattage: |
500W |
Size: |
||
GNH-SL-1-600W |
Wattage: |
600W |
Size: |
||
GNH-SL-1-700W |
Wattage: |
700W |
Size: |
675×420×155 (mm) |
|
GNH-SL-1-900W |
Wattage: |
900W |
Size: |
||
GNH-SL-1-1000W |
Wattage: |
1000W |
Size: |
855×420×155 (mm) |
|
GNH-SL-1-1200W |
Wattage: |
1200W |
Size: |
Product detail view for 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:
Dimension of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:

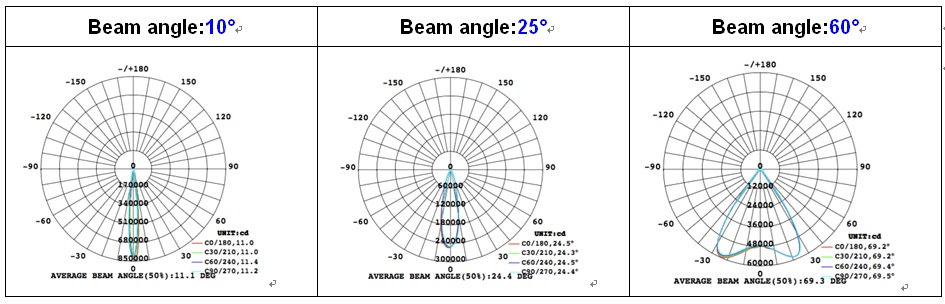

Luminous Distribution of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:
Bracket type of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:
PACKING DETAIL of 200W 240W 300W 400W 500W 600W 700W 900W 1000W 1200W LED Sports stadium light:
Item no.: |
GNH-SL-1-200W |
N.W: |
9.20KGS |
Carton Size: |
440×495×230(mm) |
GNH-SL-1-240W |
9.20KGS |
||||
GNH-SL-1-300W |
9.40KGS |
||||
GNH-SL-1-400W |
14.50KGS |
620×495×230(mm) |
|||
GNH-SL-1-500W |
14.50KGS |
||||
GNH-SL-1-600W |
14.90KGS |
||||
GNH-SL-1-700W |
21.20KGS |
800×495×230(mm) |
|||
GNH-SL-1-900W |
21.80KGS |
||||
GNH-SL-1-1000W |
26.00KGS |
980×495×230(mm) |
|||
GNH-SL-1-1200W |
26.80KGS |
LED Stadium lights have so many applications over and above lighting up outdoor sports areas.
The area flood light can Light up courts and stadiums. These lights are durable and protect against tough weather conditions.
Also they can be used for security lighting, flood lighting and on top of large poles.
