Home > Product > LED Flexible strip light > High Voltage 110V 220V Flexible Led Strip Light SMD2835 4.8W 6W 8W

High Voltage 110V 220V Flexible Led Strip Light SMD2835 4.8W 6W 8W

*Available in full colors
*It can be used for 100M/roll without cutting
*1M per cut available, so easy for projects as well as for wholesalers
*For both indoor and outdoor use, high quality anti-aging PVC material, low power consumption
*Strong enough to stand heavy pressure, eather and temperature resistant.
*220V, high voltage, but the PVC cover is 100% safe. No need transformer
*FPC board color: white, brown
*Long life span: 50,000 hours
*2 year warranty

  • Specification
  • Application
  • Note
  • Inquire

High voltage LED strip lights are a type of LED lighting that operates at higher voltages, typically 110V or 220V, compared to the low voltage LED strip lights that operate at 12V or 24V. Here are some advantages and characteristics of high voltage LED strip lights:

  1.

    Longer Runs: High voltage LED strip lights can be installed in longer runs without experiencing significant voltage drop. This makes them suitable for large spaces and installations where the light strips need to cover a substantial area.



  2.

    Energy Efficiency: They provide energy-efficient lighting, consuming less power while producing bright illumination. This makes them cost-effective for long-term use and suitable for environments where lighting is required for extended periods.



  3.

    Plug-and-Play: High voltage LED strip lights are designed for plug-and-play operation with an AC power source. This makes installation easier and more convenient, especially in locations with standard household voltages.



  4.

    Bright Illumination: These lights provide bright and uniform illumination, suitable for general lighting purposes in residential, commercial, or industrial settings.



  5.

    Versatility: They are suitable for a wide range of applications, including architectural lighting, accent lighting, task lighting, and ambient lighting. Their versatility makes them suitable for various indoor and outdoor lighting projects.



  6.

    Dimmable: Many high voltage LED strip lights are dimmable, allowing for control over the brightness and creating customizable lighting effects.



  7.

    Durability: LED strip lights are known for their durability, long lifespan, and low maintenance requirements, making them a reliable lighting solution.



High voltage LED strip lights offer an efficient, versatile, and durable lighting solution for a variety of applications. If you need more information or have specific questions about high voltage LED strip lights, feel free to ask!

General introduction for 2835SMD high voltage led strip light

High voltage LED strip lights are powered by 110V or 220V, which are standard household voltages. They allow for longer runs without significant voltage drop, making them suitable for large installations. These lights can provide bright, welcoming light that adds to any atmosphere while providing the energy efficiency necessary for locations where lighting is on a great part of the day. They can be used for general lighting and are designed for plug-and-play operation with an AC power source.

 The high voltage LED flexible strip light series is newly developed by Greenough Enterprise Co., Ltd. With SMD2835 or 5050 SMD LED as light source, It is covered by PVC which is fully ECO-friendly, thus it has good-looking and waterproof. Available in full colors, have Warm-White, Cool-White, Red, Green, Blue, Yellow or RGB to option.

Specification for 2835SMD high voltage led strip light

Model Number

Power/M

Light Source

LED Qty(PCS/M)

Input Voltage(V)

Color

Size(MM)

GNH2835-HV-60LED-110V GNH2835-HV-60LED-220V

4.8W/6W/8W

SMD2835

60/120/180

     100V      220V

White/ Red/ Yellow/Green/Blue/RGB

11*7.5

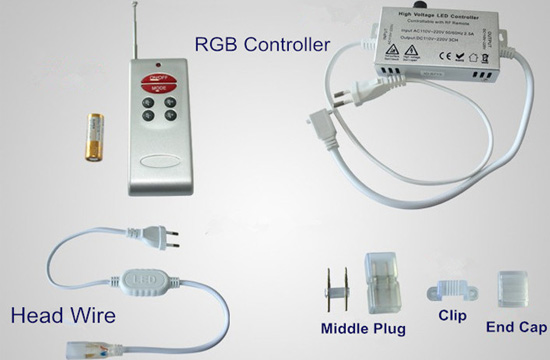

 Accessories:

The installation for 3528SMD high voltage led strip light


 Application for high voltage led strip light:

*Building decoration

*Amusement part and theater lighting

*Emergency hallway lighting

*Archway, canopy and bridge edge lighting

*Shopping mall, restaurant, dinner room, hotel, Jewelry store, meeting room and advertisement lighting and decoration, Channel letter lighting



*Bar, KTV, Disco, Club. entertainment.

 Installation  for  high voltage led strip light

1. InstallationTake out the package, make sure it comes with necessary accessories, which should include: fixing clips, middle plugs, end caps, head wires.fix the strips with clips onto where you need, put the wire into sockets to light the strips.

2. Cut: Please cut the strips only along the cutting mark on the PCB, don’t cut at random. Block up the end with end caps, seal with enough glue to make sure it’s still waterproof.

3. Connect: Plug the head wire into a strip to conduct the electricity, or plug a middle plug into the ends of two separate strips to connect them into a long strip, after well connected, seal all the plugs with enough glue
