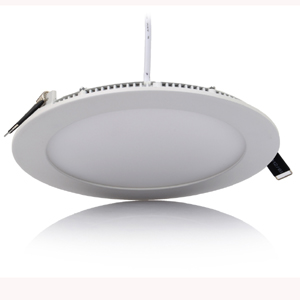

Specification for small round led panel light, 2835SM LED.
Model Number |
Power |
Dimension (MM) |
Cut hole(MM) |
Light Source |
LED Qty |
Luminous Flux(LM) |
Input Voltage |
CRI |
GNH-PL-RP-6W-01 |
6W |
Φ120mm*H20mm |
Φ110mm |
2835SMD |
30 |
367-422 |
100-240VAC |
≥80 |
GNH-PL-RP-9W-02 |
9W |
Φ147mm*H20mm |
Φ135mm |
2835SMD |
45 |
564-648 |
100-240VAC |
≥80 |
GNH-PL-RP-12W-03 |
12W |
Φ174mm*H20mm |
Φ160mm |
2835SMD |
60 |
753-866 |
100-240VAC |
≥80 |
GNH-PL-RP-15W-04 |
15W |
Φ200mm*H20mm |
Φ187mm |
2835SMD |
72 |
920-1058 |
100-240VAC |
≥80 |
GNH-PL-RP-18W-05 |
18W |
Φ225mm*H20mm |
Φ205mm |
2835SMD |
90 |
1119-1286 |
100-240VAC |
≥80 |

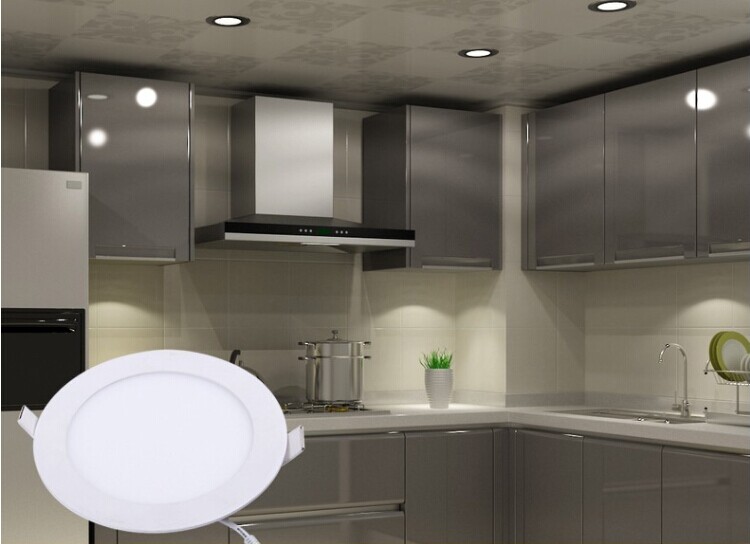

Application for led panel light:
1. Shopping mall, supermarket, hotel lighting, office lighting etc.;
2. Family house, kitchen, warehouse, bathroom, corridor, garage;
3. Commercial show windows and bars, subway, airport, exhibition hall, gymnasium etc..
