1. Thickness 20mm,Correlated color temperature for choose( 3000K、4000K、5000K、6000K), (Function can choose CCT
Dimmerable / Brightness Dimmerable or RGB , the price of these is exclusive);
2. Embedded installation, hoisting or hunging(Celling installation is also available)
3. Brushed bright silver color for frame;
4. This quotation for imported Korea PC diffusion plate(ISO),fire prevention and impact resisting performance, transmittance up
to 93%;
5. 0.2W 2835 LEDs,high luminous efficacy, Low light degradation. Beam angle≥110,Ra≥70/80;
6. IP67 CLASSⅡ, Temperature rise <20°, Long lifespan:≥50,000h
7. Power Driver: Lifud( CE/ROHS/SAA/TUV IP67)
8. Warranty 2 years;
General information for Waterproof IP67 LED Panel Light:
Waterproof IP65 Led Panel Pight, LED Flat panel ,LED Lighting Panel, Interior Lighting, Waterproof LED Lighting. Waterproof Ceiling Light
Led panel lights are designed to be a genuine replacement for traditional modular fittings or troffer fittings,
the likes of which are found in pretty much every office ceiling throughout the world.
Instead of using four fluorescent lamps and control gear, as in traditional recessed fittings,It can be in built-in,
Suspending way, or Mounted Way for installation.
Led panel lights use a fraction of the power and last for an amazing 50,000 hours. So,
not only do you save money on energy costs, there is a tremendous saving in maintenance requirements.
Greenough has launched a new waterproof energy efficient light fitting. The IP65 LED panel light are particularly suited to
those industries that need to maintain an exceptionally clean environment, such as food preparation and healthcare.It also can be in IP67 rating.
The fitting is a waterproof version of our existing LED panels, which offer energy savings of over 70% when compared with traditional
lighting technology.
The panels, which are the first waterproof LED panels on the market, fit flush to the ceiling and are able to
withstand any kind of cleaning process including high power jet and pressure washers. Other LED panels currently
available tend to become damaged by water or are cracked by the excessive force of the cleaning process.
Other features of the panels include:
Only 20mm thickness – one of the thin lighting panels on the market
No glass in the composition guarantees safety for food production areas
High Colour Rendering Index ensures that reflected colour looks the way it should
Fully waterproof power supply
The waterproof IP65 LED panels were designed for the food production market but offer an efficient,
durable solution for all industries that want to improve their energy usage and need to maintain especially hygienic surroundings.
Until now, companies operating these kinds of industries have been restricted in the fittings that they can use because
those available lack the necessary resilience.
Speicification For Waterproof IP67 LED Panel Light:
Item Number
|
GNH2835-6060-42W-IP67
|
Lumen
|
2940—3360
|
Power Consumption
|
42W
|
Luminous Efficiency
|
>80 lm/W
|
CRI
|
>Ra80
|
CCT
|
2800-6500K
|
Input voltage(V)
|
AC85-265V
|
Power Factor
|
>0.93
|
Light Source
|
2835SMD
|
LED QTY
|
204PCS
|
Size
|
616x616x20mm
|
Dimmable ability
|
Optional
|
Beam Angle
|
120º
|
Lifetime
|
50,000 hours
|
Detail parts for led panel light:

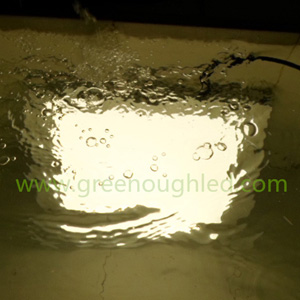

IP67 led panel light is testing in water:
Greenough Enterprises Co., Ltd. is a professional manufacturer, supplier of indoor and outdoor lighting located in Shenzhen. We devoted to develop, manufacture, and design the high quality LED lighting to all over the world. All the products are CE certified as well as RoHS compliant. for your projects.
Our products include , T5 driverless tubes, (compatible T8 LED tube, T8 Led integrated tubes, LED poultry farming waterproof tubes, , T8 PIR sensor tubes, Microwave sensor rador t8 tubes, Emergency tubes, ),T8 pink meat tubes, T8 pink butcher tubes,(GU10, MR16,B22,E27), LED Spotlight(GU10, MR16,B22,E27), AC driverless Samsung spot light, CREE LED down lighting ,Samsung LED down light, CREE LED ceiling light, CREE LED track light, Cree LED trunk light, LED panel light, pink LED panel light, CREE LED flood light, LED street light, CREE LED high bay light, LED drivers.
Here at We guarantee not only to provide time service and professional manner but we will also save you money on your home or business's electricity bill's while helping reduce the carbon and pollution in our environment.
Application For Waterproof IP67 LED Panel Light:
The waterproof IP65 LED panels were designed for the food production market but offer an efficient,
durable solution for all industries that want to improve their energy usage and need to maintain especially hygienic surroundings.
Until now, companies operating these kinds of industries have been restricted in the fittings that they can use because
those available lack the necessary resilience.
Part No.
|
Package dimension
|
Net Weight/one lamp
|
Gross Weight
|
GNH2835-6060
|
700*660*180mm, 5pcs/carton
|
5.00kg/pc
|
26.00kg
|
