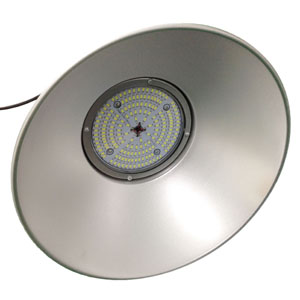

GNH-HBL-20W-30W-40W SMD2835 Led High Bay Light for industrial

*Adopt high thermal conductivity aluminum shell, laminated structure, thermal conductive area is fully, IP 45

*Input voltage: AC176~265V(it can adjust according requirment), Over voltage,over current protection.

*Heat dissipation design: adopt high thermal conductivity aluminum shell, laminated structure, thermal conductive area is fully.

*Can start up within 1`3 seconds, no flicker, anti-jamming, no mercury, energy saving, environment friendly.

*Shell Material：Aluminum Alloy, Warm and cold color temperature are available.

*Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light.

*LED high bay light uses LEDs with long lifetime more than 50,000 hours. It has no ultraviolet radiation. It offers full environmental protection. It has no hazardous materials like mercury or lead entering the environment.

*The height will be 2.7 meter to 4 meter for 20W to 40W led high bay light.

Download Collection Catalogue Inquire

Specification
Application
Note
Inquire

LED high bay light for Economic lamps specifications

Product Model	Input voltage(V)	Power (W)	Dimension(mm)	Beam angle	LED type	Lumen (lm)	Color temperature	Material
GNH-HBL-20W-1	176-265V	20W	285255125	120°	SMD2835Epistar	100-110 lm/w	3000K/4000K/6000K	Glass
GNH-HBL-30W-2	176-265V	30W	380300170	120°	SMD2835Epistar	100-110 lm/w	3000K/4000K/6000K	Glass
GNH-HBL-40W-3	176-265V	40W	380300170	120°	SMD2835Epistar	100-110 lm/w	3000K/4000K/6000K	Glass

The Dimensional Drawing of led high bay light

A*B*C for 20W: 120°: 285*255*125mm

A*B*C for 30W: 120°: 380*300*170mm

A*B*C for 40W: 120°: 380*300*170mm

Photometric drawing (just for reference)

Key words: LED High Bay Light

Greenough Enterprise Co., Ltd produce (AC Driverless dimmable) led T8, T5 tube light, Pink led tube light, led panel light, (AC Driverless dimmable) led spot light, (AC Driverless dimmable) led down light, (AC Driverless dimmable) led flood light, (AC Driverless dimmable) led high bay light, led canopy light, led PAR light.

Application

LED High Bay Light are suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...and some other places where need industrial lighting.

*Do Not remove any parts

*For indoor use only

*Must be under the required voltage.

*Can be placed in conventional

*8-10 hours used per day

*Weight: 3-4 KG
