GNH314 New Model LED Track Light/LED Spotlight 12W 20W 25W 35W 45W

*With special model heat sink for the GNH314 LED track light

*Power:12W, 20W, 25W, 35W, 45W

*CREE LED COB track light

*Track light with CE RoHS approved

* Emit beam light, average aperture, no speckle

* Particularly designed constant current driver for open or short circuit protection, no flickering

* Even lower energy consumption with no extra investment for new lumen

* Low heat, no UV or IR radiation,Green and eco-friendly lighting source without mercury

Download Collection Catalogue Inquire

Specification
Application
Packing Details
Inquire

Greenough new led track light GNH314 is with special honeycomb type heat sink. They are special model.

We usually also called them led track spotlight, Track and Rail LED Lighting.

Compared with conventional incandescent lamp, lighting efficiency enhances 10 times, and saves 90% energy.

Compared with conventional energy saving light, lighting efficiency enhances 200%, which is economical and environmentfriendly.

Replace the energy saving light and incandescent lamp with led, the operating costs will be greatly reduced.

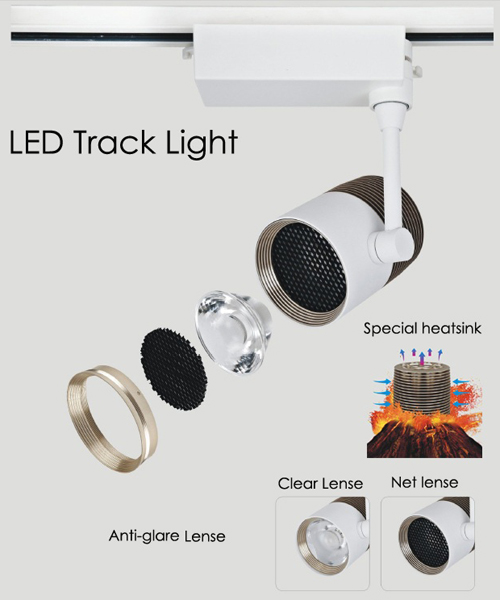

There are many advantages for this type led track light GNH314 with special heat sink:

*With Aluminum 6063CNC precision machining

*Voltage range, from AC100V to AC240V.

*CREE LED COB track light

*The clear lenses and net lenses are available, anti-glare lenses

*Many housing color for option: White+Gold/White+Black/ All Black/ All Grey

*20°/30°/40°/12°/24°/36° beam angle is for option

*Solid heat integrated-rapid heat conduction speed.

*Increase the contact area of air-larger heat radiating area

*Be good for dissipating the heat-rapid heat radiating speed

*Reduce the junction temperature of LED Chip-extend the lifespan of LED Chip

*With high color rendering, color rendering index reaches 80, highly improved than the traditional fluorescent lamp, which can reflect the original color of the object.

Specifications For Commercial led track lighting for shop, supermarket etc:

Model	Power	Lamp color	Dimension	LED Source	Voltage	Lumen	Color temperature	CRI	Beam Angel
GNH314-LED-TSL-12W	12W	White+Gold/White+BK/ All Black/ All Grey	65L150H83mm	CREE	100-240V	900lm	3000K-6000K	≥80	20°/30°/40°
GNH314-LED-TSL-20W	20W	White+Gold/White+BK/ All Black/ All Grey	65L150H105mm	CREE	100-240V	1600lm	3000K-6000K	≥80	20°/30°/40°
GNH314-LED-TSL-25W	25W	White+Gold/White+BK/ All Black/ All Grey	85L175H108mm	CREE	100-240V	2000lm	3000K-6000K	≥80	12°/24°/36°
GNH314-LED-TSL-35W	35W	White+Gold/White+BK/ All Black/ All Grey	85L175H128mm	CREE	100-240V	2600lm	3000K-6000K	≥80	12°/24°/36°
GNH314-LED-TSL-45W	45W	White+Gold/White+BK/ All Black/ All Grey	100L190H138mm	CREE	100-240V	3500lm	3000K-6000K	≥80	12°/24°/36°
