UFO LED High Bay Light With Meanwell Driver/Square LED Industrial Lamp 100W 120W 150W

*New design, with lighter weight, better heat dissipation, more stable quality, easy to install

*The main accsseries are imported materials, anti-high temperature and anti-corrosion

*The led chips are the imported high brightness chips, with higher lumen output, high thermal conductivity, low luminous
decay, pure light color, no ghosting etc

*The lamps are with the angle locking device, to ensure the angle won't be changed for the long-term working in the vibration
environment

*Using the latest technology of heat radiation structure, can ensure lamp life*With pedestal, pendant, pole, Chain, Bracket etc installation methods.

Download Collection Catalogue Inquire

Specification
Application
Packing details
Inquire

Specification for Square new design led high bay light with meanwell driver:

Greenough Square UFO high quality LED high bay, new design for industrial led lighting. Adopting the Nichia3030 led chip, it is well known Cree, Nichia & Philips are top quality brands in industrial LED market.

With longer lifespan, lower maintenance cost, higher efficiency. LED chip could last up to 50000 hours if the heat dissipation is good enough and driving current is correct.

It is available in round and square version. Available in 100W 150W 200W, the round one is much popular than square one.

They are with IP 65 protection level with Meanwell Driver. With high lighting effect: 100-130LM/W. With better heat dissipation, more stable quality.

The input voltage is 90-305VAC, PF is more than 0.95, and they also could be dimming in 0-10V or Dali Dimming.

Our UFO led high bay light could be for industrial use with 5 years warranty.

It is with special design heat sink and the top lens for dazzle, the lens is different with others. Also it is with less transportaion cost compare with other styles. As the design of this item UFO LED high bay

light are more fashion and lightness but to maintain unified and perfection of buildings when to be installed, without destroying the luminaire and lights embedded without glare to achieve effect of soft and uniform light.

They will be in pedestal, pendant, pole, Chain, Bracket etc installation methods.

Part Number		GNH-S-HBL-100W	GNH-S-HBL-120W	GNH-S-HBL-150W
Power (W)		100W	120W	150W
Input voltage(V)		90-305VAC
Input Current		0.46A@220VAC	0.55A@220VAC	0.68A@220VAC
PF		>0.95@220VAC
DC V out		50-60VDC
DC A out		1.6A	1.9A	2.45A
CCT		Warm（4000K/Ra80）,White（5700K/Ra70 and Ra80）
Ra >80	Typical Flux	9000Lm±10%	13200Lm±10%	15000±10%
Ra >70	Typical Flux	10000Lm±10%	13800Lm±10%	15800Lm±10%
LED Qty (pcs)		90	135	135
LEDBrand		Nichia3030
Beam Angle		PC lens with 50°and 80°
IP Grade		IP65
Operation Temp		-40℃ ~ +65℃
Body Color		Black (MOQ is required for other color demand.)
Life Span		50000 Hours	50000 Hours	50000 Hours
Product Size(mm)	Customized Driver	302302147	302302147	302302147
	Meanwell Driver	302302173	302302173	302302173
Packing Size(mm)	Customized Driver	368368216	368368216	368368216
	Meanwell Driver	368368216	368368216	368368216
Mounting Type		Pole (default), Chain (optional), Bracket (optional)

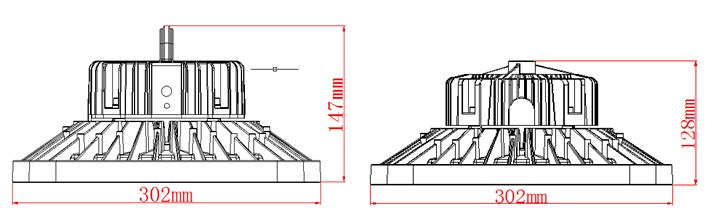

Size for Square new design led high bay light:

Structure for Square new design led high bay light:

Distribution Diagram(100W in 60°and 200 in 90°for reference)

Aging Test for Greenough LED High Bay Light:

Key words: UFO/Round/Square LED High Bay Light

Greenough Enterprise Co., Ltd produce (AC Driverless dimmable) led T8, T5 tube light, Pink led tube light, led panel light, (AC Driverless dimmable) led spot light, (AC Driverless dimmable) led down light, (AC Driverless dimmable) led flood light, (AC Driverless dimmable) led high bay light, led canopy light, led PAR light.

Application for Greenough led high bay light:

Suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...and some other places where need industrial lighting.

Packing for Square new design led high bay light:

Part No.	Driver	Packing Box	Gross Weight	Net weight
GNH-S-HBL-100W	CE Driver	368368216	5.10Kg	4.15Kg
GNH-S-HBL-100W	Meanwell	368368216	4.70Kg	3.80Kg
GNH-S-HBL-150W	CE Driver	368368216	5.20Kg	4.25Kg
GNH-S-HBL-150W	Meanwell	424424270	7.10Kg	5.70Kg
GNH-S-HBL-200W	CE Driver	368368216	5.10Kg	4.15Kg
GNH-S-HBL-200W	Meanwell	424424270	5.20Kg	4.25Kg
