Home > Product > LED Downlight > New Recessed Sharp LED Down Light/Cut Hole 205mm 60W LED Hotel Lighting

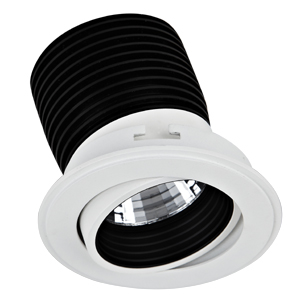

New Recessed Sharp LED Down Light/Cut Hole 205mm 60W LED Hotel Lighting

*7W 10W 15W 20W 30W 40W 50W 60W are available

*With special model heat sink-Sunflower or Honeycomb

*Citizen/Bridgelux COB LED Chip and Isolated driver

*These lights are in cut hole 65mm, 75mm, 90mm, 100mm, 120mm, 160mm, 205mm

*Aluminum Alloy housing by die-casting for good heat dissipation

*Easy installation: use great powerful springs, safe and durable

*PMMA lens diffuser, 15°/24°/36°/38°/60° as options

*Emitting angle is adjustable; No flicker, soft and uniform light

*Long lifetime and high performance

*Comply with CE and Rohs standard.

Download Collection Catalogue Inquire

Specification
Application
Inquire

Specifications for New Recessed Sharp/Citizen/Bridgelux COB LED Commercial Down Light with Special heatsink (Sunflower or Honeycomb Radiator)

and Isolated driver in cut hole 65mm, 75mm, 90mm, 100mm, 120mm, 160mm, 205mm for 7W 10W 15W 20W 30W 40W 50W 60W

Model	Power	Dimension	Cut hole	LED Source /Driver	Voltage	Color temperature	Luminous flux	CRI	Beam Angel
GNH-DL-T-7W-65-E	7W	Φ75*H65	φ65mm	COB /Isolated driver	AC100-240V	3000-6000K	500Lm	Ra>80	15°/24°/38°
GNH-DL-T-10W-75-E	10W	Φ85*H80	φ75mm	COB /Isolated driver	AC100-240V	3000-6000K	700Lm	Ra>80	24°/60°
GNH-DL-T-15W-90-E	15W	Φ108*H100	φ90mm	COB /Isolated driver	AC100-240V	3000-6000K	1000Lm	Ra>80	15°/24°/38°/60°
GNH-DL-T-20W-100-E	20W	Φ118*H100	φ100mm	COB /Isolated driver	AC100-240V	3000-6000K	1400Lm	Ra>80	15°/24°/38°/60°
GNH-DL-T-30W-120-E	30W	Φ138*H115	φ120mm	COB /Isolated driver	AC100-240V	3000-6000K	2000Lm	Ra>80	24°/36°/60°
GNH-DL-T-40W-160-E	40W	Φ180*H110	φ160mm	COB /Isolated driver	AC100-240V	3000-6000K	2600Lm	Ra>80	15°/24°/40°
GNH-DL-T-50W-160-E	50W	Φ180*H120	φ160mm	COB /Isolated driver	AC100-240V	3000-6000K	3100Lm	Ra>80	15°/24°/40°
GNH-DL-T-60W-160-E	60W	Φ180*H140	φ160mm	COB /Isolated driver	AC100-240V	3000-6000K	3700Lm	Ra>80	15°/24°/40°
GNH-DL-T-40W-205-E	40W	Φ230*H110	φ205mm	COB /Isolated driver	AC100-240V	3000-6000K	2600Lm	Ra>80	15°/24°/40°
GNH-DL-T-50W-205-E	50W	Φ230*H120	Φ205mm	COB /Isolated driver	AC100-240V	3000-6000K	3100Lm	Ra>80	15°/24°/40°
GNH-DL-T-60W-205-E	60W	Φ230*H140	Φ205mm	COB /Isolated driver	AC100-240V	3000-6000K	3700Lm	Ra>80	15°/24°/40°

Size for GNH-DL-T-7W-10W-15W-20W-30W-40W-50W-60W-E new model recessed led down light with special heat sink:

Brightness Contrast for GNH-DL-T-7W-10W-15W-20W-30W-40W-50W-60W-E new style led down light with special model heat sink:

What are the main uses of an LED Down light from Greenough?

LED downlights are often used in kitchen, living room and bathroom areas and are recessed for a clean, contemporary finish, giving an even light without shadow.

Housed directly into the ceiling, most LED downlights are fixed in position however adjustable fittings are available on the market.

Application for Greenough led down light:

1. Shopping mall, supermarket, hotel lighting, office lighting etc.;

2. Family house, kitchen, warehouse, bathroom, corridor,

3. Commercial show windows and bars, subway, airport, exhibition hall, gymnasium etc..
