Home > Product > LED Downlight > New Recessed LED Down Light/Cut Hole 125mm Home LED Lighting -D

New Recessed LED Down Light/Cut Hole 125mm Home LED Lighting -D

*20W 30W 40W are available

*With special model heat sink-Sunflower or Honeycomb

*Citizen/Bridgelux COB LED Chip and Isolated driver, the lights are in cut hole 125mm

*Aluminum Alloy housing by die-casting for good heat dissipation

*Easy installation: use great powerful springs, safe and durable

*PMMA lens diffuser, 15°/24°/40° as options

*Emitting angle is adjustable; No flicker, soft and uniform light

*Long lifetime and high performance

*Comply with CE and Rohs standard.

Download Collection Catalogue Inquire

Specification
Application
Note
Inquire

Specifications for New Recessed Citizen/Bridgelux COB LED Commercial Down Light with Special heatsink (Sunflower or Honeycomb Radiator)

and Isolated driver in cut hole 152mm 20W 30W 40W

Model	GNH-DL-T-20W-D	GNH-DL-T-30W-D	GNH-DL-T-40W-D
Power	20W	30W	40W
Dimension	φ138*H70	φ138*H80	φ138*H100
Cut hole	Φ125mm	Φ125mm	Φ125mm
LED Source /Driver	COB /Isolated driver	COB /Isolated driver	COB /Isolated driver
Voltage	AC100-240V	AC100-240V	AC100-240V
Color	White	White	White
Color temperature	3000-6000K	3000-6000K	3000-6000K
Luminous flux	1600Lm	2200Lm	3000Lm
CRI	≥80	≥80	≥80
Beam Angel	12°/24°/40°	12°/24°/40°	12°/24°/40°

Size for GNH-DL-T-20W-30W-40W-D new style recessed led down light with special model heat sink:

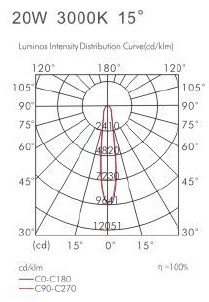

Brightness Contrast for GNH-DL-T-20W-30W-40W-D new style led down light with special model heat sink:

(20W in 3000K for your reference)

What are the main uses of an LED Down light from Greenough?

LED downlights are often used in kitchen, living room and bathroom areas and are recessed for a clean, contemporary finish, giving an even light without shadow.

Housed directly into the ceiling, most LED downlights are fixed in position however adjustable fittings are available on the market.

Application for Greenough led down light:

1. Shopping mall, supermarket, hotel lighting, office lighting etc.;

2. Family house, kitchen, warehouse, bathroom, corridor,

3. Commercial show windows and bars, subway, airport, exhibition hall, gymnasium etc..
