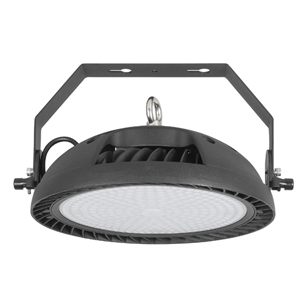

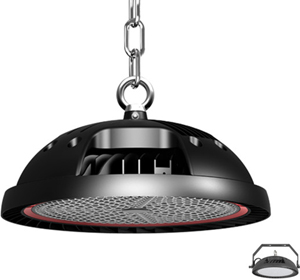

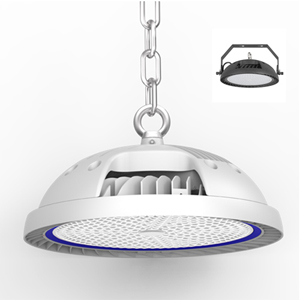

NEW UFO LED High Bay Light/LED Industrial Lamp/Factory Lights 100W 150W 200W 240W 300W

*Unique NEW designe UFO shape , lighter and smaller

*Adopted Osram led Chip as light source with high lighting efficiency, high CRI, low light degradation.

*Input voltage: AC90~305V,Over voltage,over current protection.

*Luminous efficiency: 130-140 lm/w; 50°/90°/150° beam angle optional.

*Wide aluminum plate design, heat dissipation fast and evenly, IP 65 protection level.

*Glass cover or PC convex cover

*Shell Material Aluminum Alloy,Shell Color:Black,Grey,Warm and cold color temperature is available.

*Installation: Bracket hanging & Hook hanging

*5 years warranty

Download Collection Catalogue Inquire

Specification
Application
Packing Details
Inquire

Greenough New Round UFO high quality LED high bay, new design for industrial led lighting. Adopting top quality Osram led chip. It is quality brands in industrial LED market. With longer lifespan, lower maintenance cost, higher efficiency.

LED chip could last up to 50000 hours if the heat dissipation is good enough and driving current is correct.

It is available in round and square version, the round one is much popular than square one. With better heat dissipation, more stable quality.

It is with special design heat sink and the top lens for dazzle, the lens is different with others. Also it is with less transportaion cost compare with other styles. As the design of this item UFO LED high bay lamp.

light are more fashion and lightness but to maintain unified and perfection of buildings when to be installed, without destroying the luminaire and lights embedded without glare to achieve effect of soft and uniform light.

Features:

*50000 hours life span.

*It is available in round and square version.

*Available in 100W 150W 200W 240W 300W

*IP 65 protection level with Meanwell Driver or CE driver

*With high lighting effect: 130-140LM/W

*The input voltage is 90-305VAC

*PF is more than 0.95

*They also could be dimming in 0-10V or Dali Dimming.

*5 years warranty for with meanwell driver light, 3 years for CE driver light.

*New design, with lighter weight, better heat dissipation, more stable quality, easy to install

*The main accsseries are imported materials, anti-high temperature and anti-corrosion

*The led chips are the imported high brightness chips, with higher lumen output, high thermal conductivity, low luminous decay, pure light color, no ghosting etc

*The lamps are with the angle locking device, to ensure the angle won't be changed for the long-term working in the vibration environment

*Using the latest technology of heat radiation structure, can ensure lamp life

*With pedestal, pendant, pole, Chain, Bracket etc installation methods.

Specification

Part Number	GNH-UFO-HBL-100W-02	GNH-UFO-HBL-150W-02	GNH-UFO-HBL-200W-02	GNH-UFO-HBL-240W-02	GNH-UFO-HBL-300W-02
Power (W)	100W	150W	200W	240W	300W
Input voltage(V)	90-305VAC
Dimension (MM)	φ360*L188mm	φ360*L198m	φ360*L207mm	φ360*L207mm	φ360*L207mm
CCT	Warm White（4000K）,White（5700K）
Flux(LM)	130-140lm/w
LED Type	Osram
Beam Angle	50°/90°/150°
IP Grade	IP65
Operation Temp	-40℃ ~ +65℃
Body Color	Black (MOQ is required for other color demand.)
Life Span	50000 Hours
Mounting Type	Pole (default), Chain (optional), Bracket (optional)

Hook hanging installation steps：

1. Cut off power before operation.

2. Knowing the inside diameter of the luminaires then Choose suitable hook for the luminaires.

3. Fix the hook before installation and make the it can bear over 3 times weight of the lamp

4. Connect the lamp with hook and make it is safe.

5. Connect the power wire：Brown,“L”，connect to LIVE； Blue, “N”，connect to NEUTRAL; Lime-green，connect to EARTH/GROUND

6. Light up the luminaires！

Bracket hanging installation steps：

1. Cut off power before installation.

2. Measure the hole size on the holder，choose suitable screw.

3. Fix the screw at the place where luminaires will be installed and it should can bear over 3 times the weight of the luminaires

4. Screw up the screws at both sides of holder, then connect the

hold hole with screws, tighten it up.

5. Connect the power wire：Brown,“L”，connect to LIVE； Blue, “N”，connect to NEUTRAL; Lime-green，connect to EARTH/GROUND

6. Light up the luminaires !

Application for Greenough led high bay light:

LED High Bay Light adopts High quality LED chips source with longer lifespan and low lighting decay LED High Bay Light Application:

Suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...and some other places where need industrial lighting.

Packing Details:

Part No.	Packing Box	Gross Weight
GNH-UFO-HBL-100W-02 GNH-UFO-HBL-150W-02 GNH-UFO-HBL-200W-02 GNH-UFO-HBL-240W-02 GNH-UFO-HBL-300W-02	L450W450H200mm	8.30Kg
