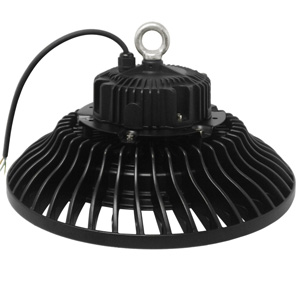

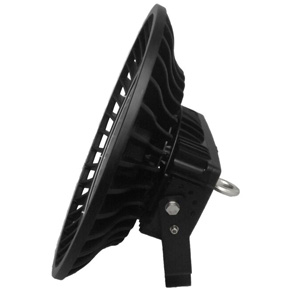

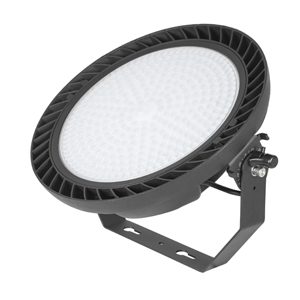

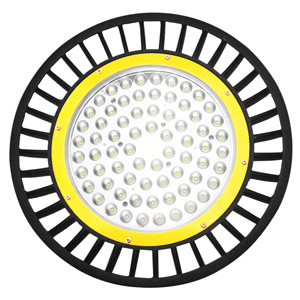

UFO LED High Bay Light/LED Industrial Lamp/100W 150W 200W 240W

*Unique designed UFO shape , lighter and smaller

*Adopted Philip 3030 led Chip as light source with high lighting efficiency, high CRI, low light degradation.

*Input voltage: AC80~265V,Over voltage,over current protection.

*Luminous efficiency: 100-110 lm/w; 60°, 90° optical design

*Angle for flexible bracket : 30°, 60°, 90°, 120°, 150°

*Wide aluminum plate design, heat dissipation fast and evenly, IP 65 protection level.

*Glass cover or PC convex cover

*Shell Material Aluminum Alloy,Shell Color:Black,Grey,Warm and cold color temperature is available.

*Installation: Bracket hanging & Hook hanging

*5 years warranty

Download Collection Catalogue Inquire

Specification
Application
Note
Inquire

UFO LED high bay, designed for industrial lighting. Adopting the newest LED lighting technology, longer lifespan, lower maintenance cost,

higher efficiency. Unique designed optical light distribution can focus the light to the lighting area, improving the

luminaire efficiency, taking the place of traditional HID lamps. They are with IP 65 protection level.

Specification for UFO led high bay light:

Part Number	GNH-UFO-HBL-100W	GNH-UFO-HBL-150W	GNH-UFO-HBL-200W	GNH-UFO-HBL-240W
Power (W)	100W	150W	200W	240W
Lumem (lm)	100lm/w	100lm/w	100lm/w	100lm/w
Input voltage(V)	AC 85 V ~265V	AC 85 V ~265V	AC 85 V ~265V	AC 85 V ~265V
LED type	Philip 3030	Philip 3030	Philip 3030	Philip 3030
Color index (CRI)	≥80	≥80	≥80	≥80
Color temperature	3000-6000k	3000-6000k	3000-6000k	3000-6000k
Beam angle	110°,120°	110°,120°	110°,120°	110°,120°
Material	Aluminum	Aluminum	Aluminum	Aluminum
Dimension	Φ360*L243mm	Φ360*L243mm	Φ360*L283mm	Φ460*L283mm
IP grade	IP65	IP65	IP65	IP65

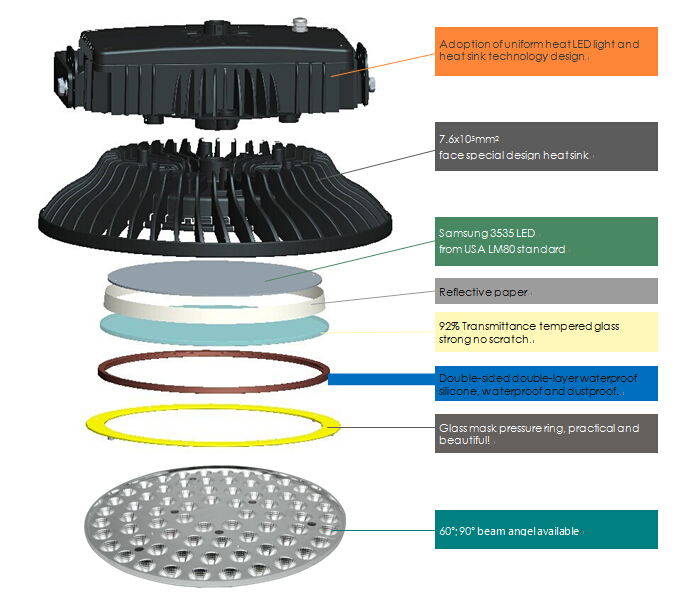

Structure for UFO led high bay light:

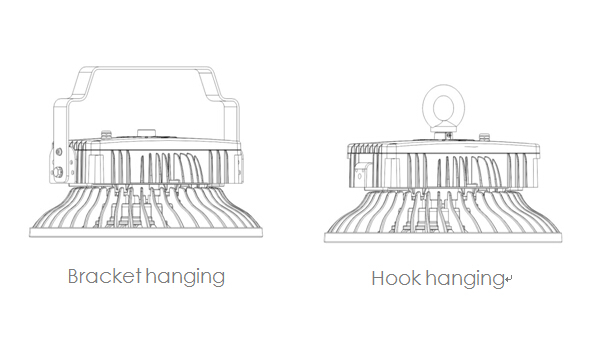

Wire and installation steps for UFO led high bay light:

Hook hanging installation steps：

1. Cut off power before operation.

2. Knowing the inside diameter of the luminaires then Choose suitable hook for the luminaires.

3. Fix the hook before installation and make the it can bear over 3 times weight of the lamp

4. Connect the lamp with hook and make it is safe.

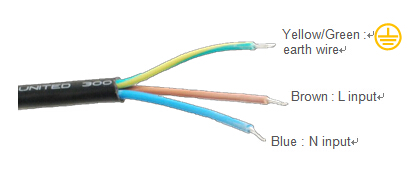

5. Connect the power wire：Brown,“L”，connect to LIVE； Blue, “N”，connect to NEUTRAL; Lime-green，connect to EARTH/GROUND

6. Light up the luminaires！

Bracket hanging installation steps：

1. Cut off power before installation.

2. Measure the hole size on the holder，choose suitable screw.

3. Fix the screw at the place where luminaires will be installed and it should can bear over 3 times the weight of the luminaires

4. Screw up the screws at both sides of holder, then connect the

hold hole with screws, tighten it up.

5. Connect the power wire：Brown,“L”，connect to LIVE； Blue, “N”，connect to NEUTRAL; Lime-green，connect to EARTH/GROUND

6. Light up the luminaires !

Application for Greenough led high bay light:

LED High Bay Light adopts High quality LED chips source with longer lifespan and low lighting decay LED High Bay Light Application:

Suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...and some other places where need industrial lighting.
